Welded Wire Mesh
Welded Wire Mesh

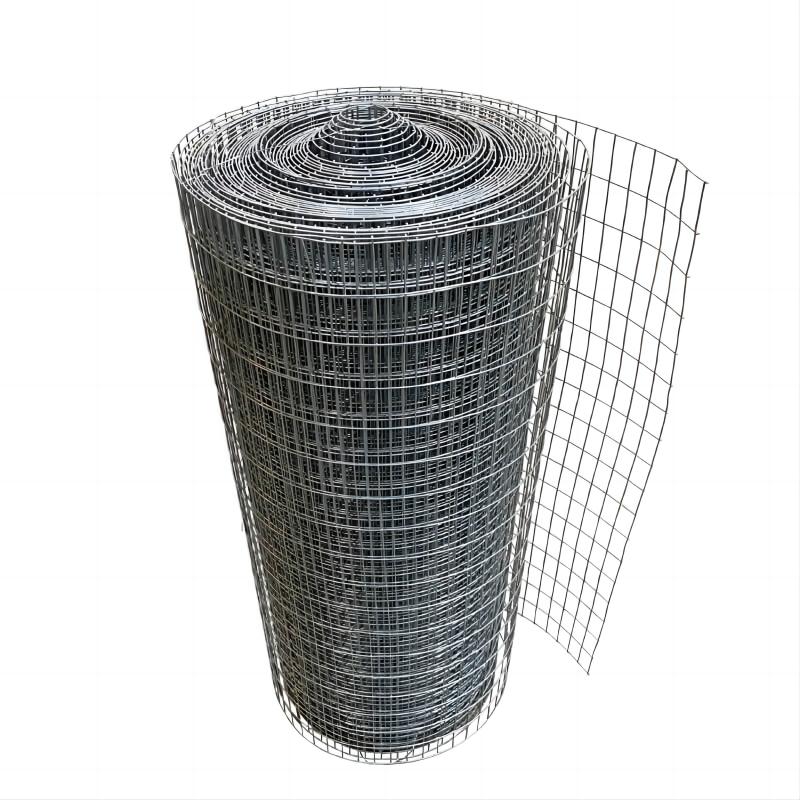

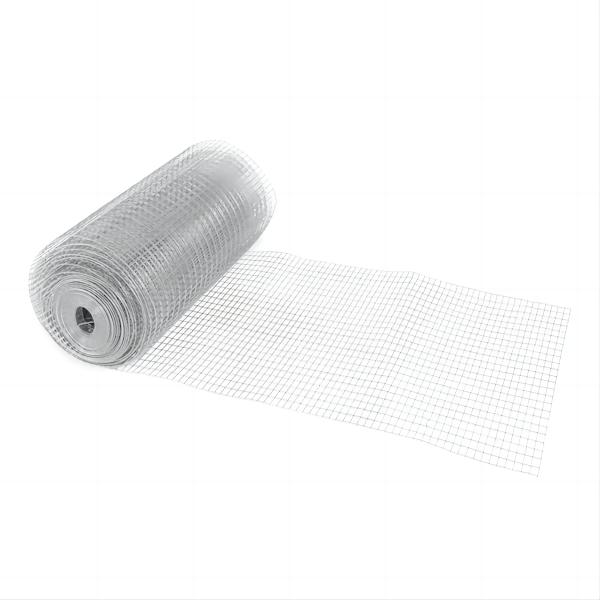

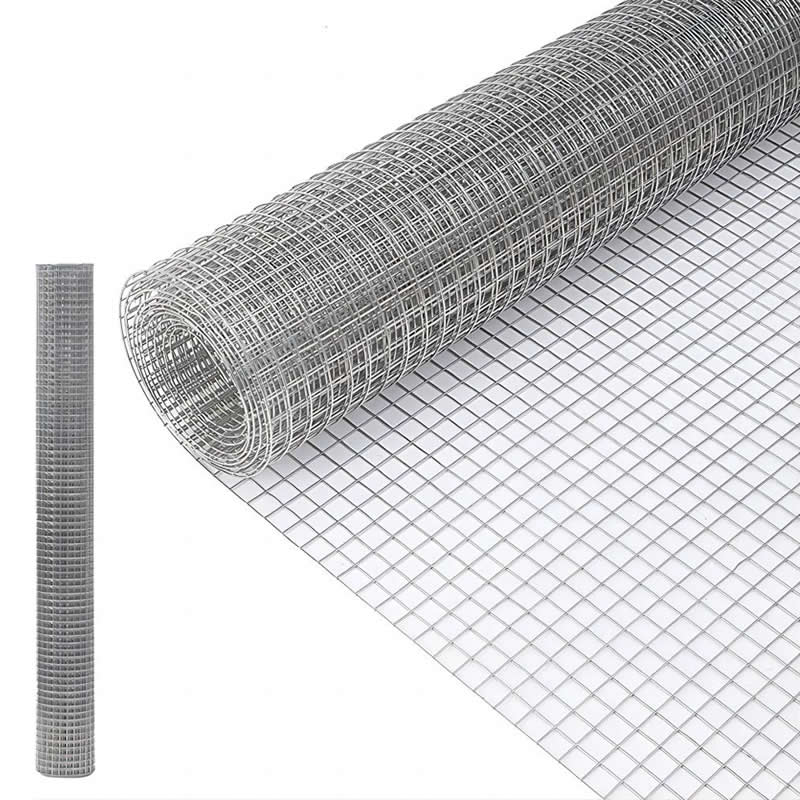

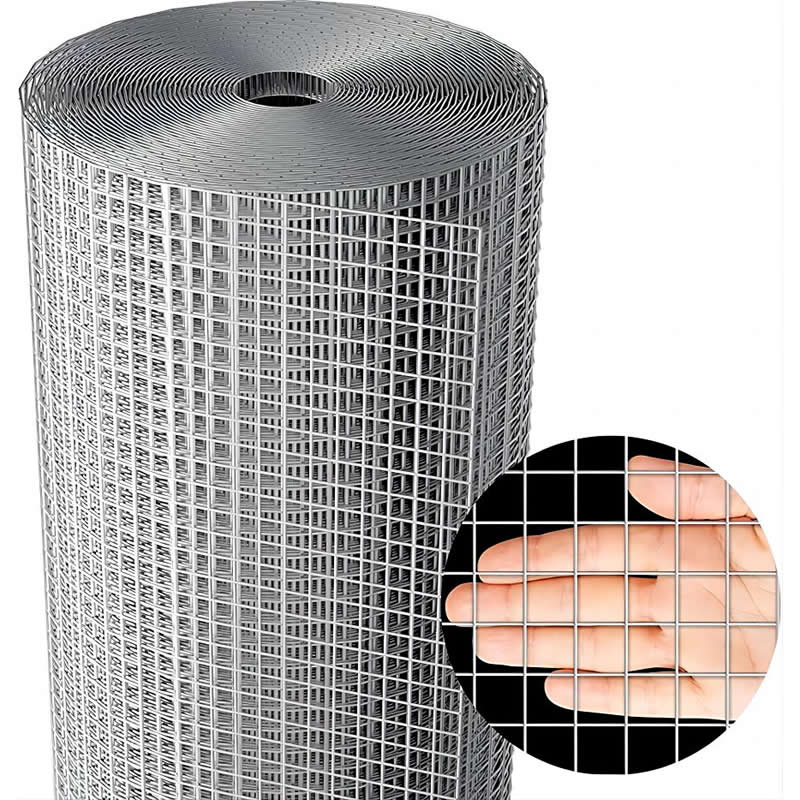

Welded wire mesh kinds: Electro galvanized welded wire mesh, hot dipped galvanized welded wire, PVC welded wire mesh, stainless steel welded wire mesh, BRC 3315 Mesh ( special welded wire mesh for Singapore and Malaysia Market .)
Welded wire mesh material: Low carbon steel wire, galvanized wire and stainless steel wire
Welded wire mesh kinds: Electro galvanized welded wire mesh, hot dipped galvanized welded wire, PVC welded wire mesh, stainless steel welded wire mesh, BRC 3315 Mesh ( special welded wire mesh for Singapore and Malaysia Market .)
Welding characteristics:
Including galvanized before or after welding . It is divided into hot dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting.
Welded wire mesh Using:
Industry, Agriculture, Building, Transportation, Mine, Filed, Lawn, Cultivation, Fence Guade, Decorate, Machine Protection and etc.
| Specification List of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||

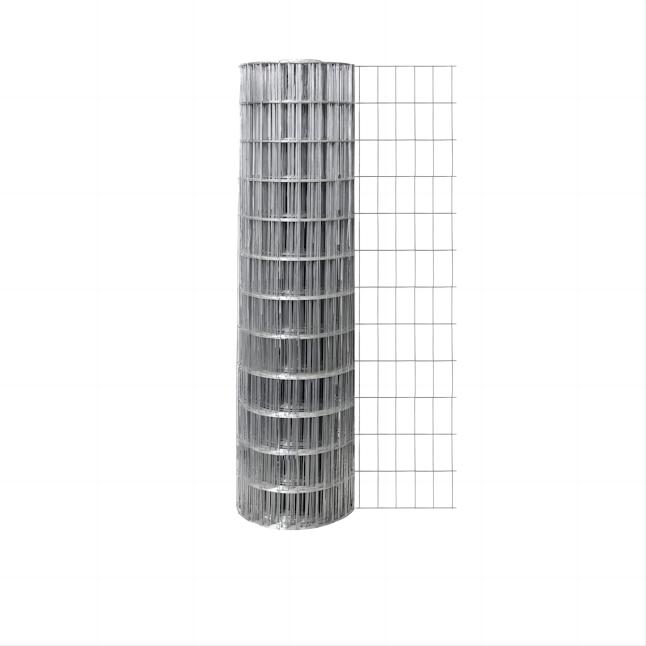

| Galvanized Fencing Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: 1, Standard roll length: 30m;width: 0.5m to 1.8m 2, Special sizes available at request 3, Packing: in waterproof paper in rolls. Custom packing available at request. | ||

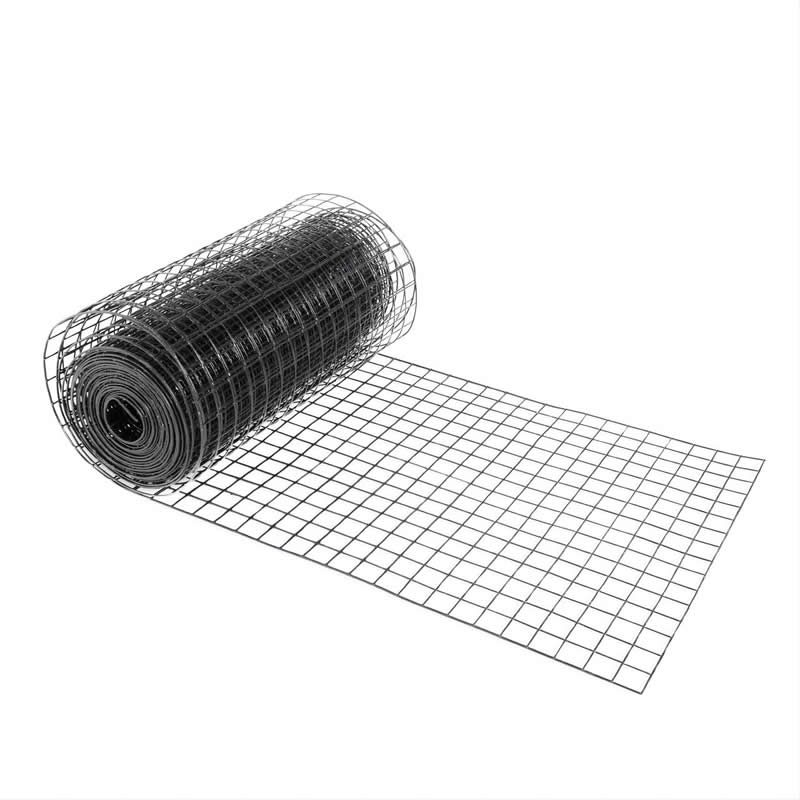

| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1, Standard roll length: 30m;width: 0.5m to 1.2m 2, Special sizes available at request 3, Packing: in waterproof paper in rolls. Custom packing available at request. | ||
