Welded Gabion
Welded gabion basket is widely used in retaining wall structures, rockfall and soil protection and so on. Welded Gabion basket are filled on site with hard and durable stone to form mass gravity structures.
Product Description
Welded gabion basket is widely used in retaining wall structures, rockfall and soil protection and so on. Welded Gabion basket are filled on site with hard and durable stone to form mass gravity structures. And welded Gabion basket are quicker and simpler to install than woven mesh Gabion basket.
Welded gabion basket is manufactured from cold steel wire for tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded Gabion basket and welded PVC Gabion basket. Gabion basket are designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to with- stand the forces generated by the retained soil.
| Name | Galvanized welded gabion basket |
| size | LxWxH=1x0.5x0.5m LxWxH=1x1x0.5m LxWxH=1x1x1m |
| Hole size | 100x50mm 100x100mm 50x50mm |
| Wire size | 4mm ,4.5mm. 5mm |
| surface Treatment | High Hot Galvanized >230g/m2 |

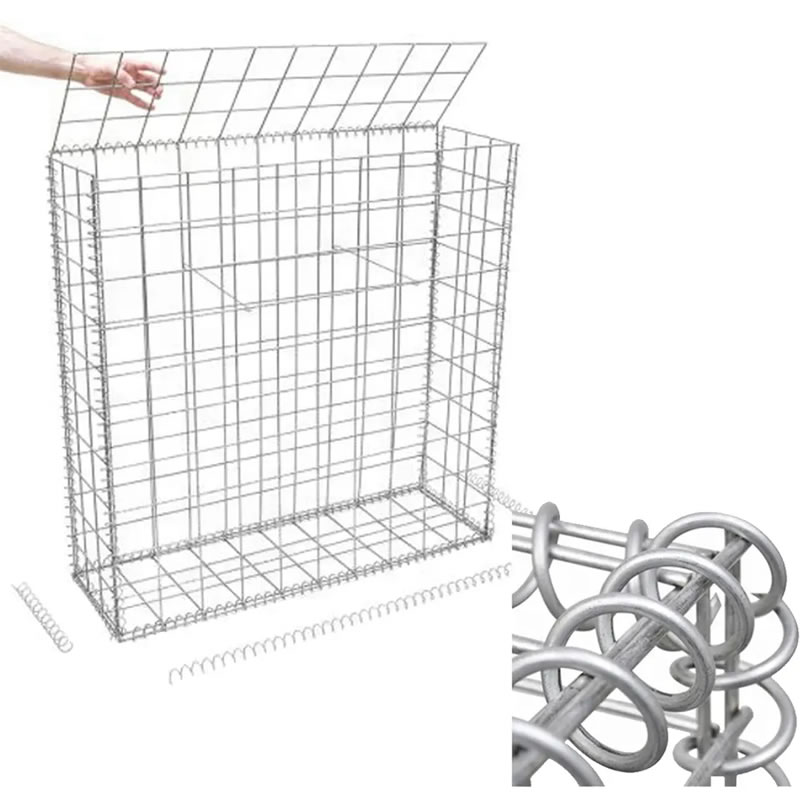

| ALL Parts | 6panel +12Spirals+4hooks |
| Name | PVC Coated Welded gabion basket |
| Hole size | 100x50mm 100x100mm 50x50mm |
| size | LxWxH=1x0.5x0.5m LxWxH=1x1x0.5m LxWxH=1x1x1m |
| Wire size | 4mm ,4.5mm. 5mm |
| surface Treatment | PVC Coated |
| ALL Parts | 6panel +12Spirals+4hooks |
