Gabion
Mattress
Gabion mattress are hexagonal nets woven by high-quality low-carbon steel wires or surface-coated pvc machines. They are mainly used for slope protection, riverbed bottom anti-scouring, and so on. Material: galvanized wire, PVC coated wire
Gabion mattress are hexagonal nets woven by high-quality low-carbon steel wires or surface-coated pvc machines. They are mainly used for slope protection, riverbed bottom anti-scouring, and so on.

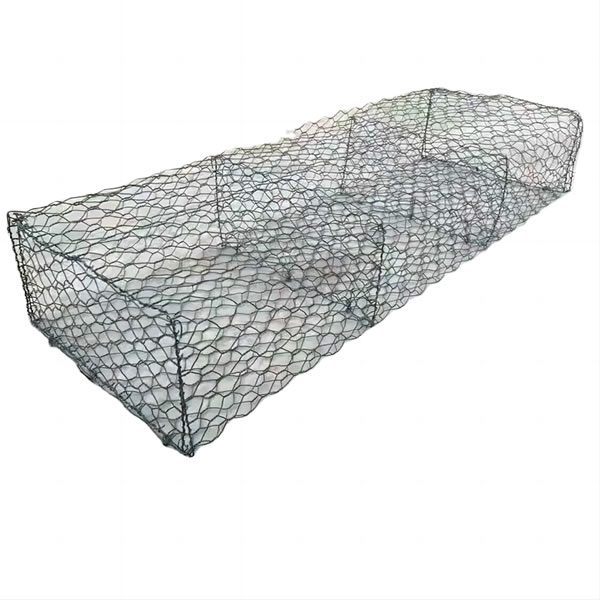

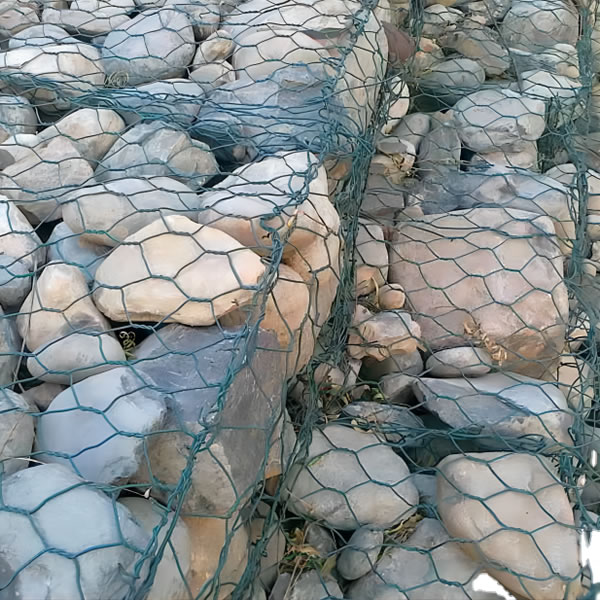

Gabion Mattress are also called gabion pads. Gabion pads refer to a cushion-shaped engineering component composed of a machine-woven twisted hexagonal metal mesh surface whose thickness is much smaller than the length and width. Reynolds cushions are filled with block stones and other fillers and then connected into one body, becoming an anti-scouring structure mainly used for water conservancy dikes, bank slopes, sea floods, etc., with the advantages of flexibility and adaptability to foundations.
Gabion mattress is a cage structure with a thickness of 0.17-0.3m, which is used to fill stones on site. Mainly used as a slope protection structure for river courses, bank slopes, and subgrade slopes. It can not only prevent the river bank from being damaged by water currents, wind and waves, but also realize the natural convection exchange function between the water body and the soil under the slope, and achieve ecological balance. Planting green on the slope can add landscape and greening effects.
The difference between Renault pads and Gabion cages and gabion cages is that the height of the pads is lower, and the structure is flat and large; the diameter of the coated steel wire is smaller than that of the Gabion, and generally has double partitions (wire diameter 2.0mm), Two kinds of single partition (2.2mm). The commonly used double-baffle Renault cushions have the advantages of convenient construction, slope protection can effectively prevent the collapse of stones, and increase the erosion resistance of the structure.
Specification:
Material: Electro galvanized wire,Hot-galvanized wire, PVC coated wire
Filler line diameter: 2mm- 4mm
Edge wire diameter: 2.5 mm-5mm
Binding wire: 2.2mm
Tensile strength: not less than 400N/mm2
Hole size: 60x80mm, 80×100mm, 80×120mm, 120×150mm
Advantage:
Perfect permeation;
Easy installation and low cost
Corrosive resistance in wet environments
Friendly to the environment
Applications:
River bed
Slop, embankment protection
Landscape green area
