Welded Wire Mesh Panel

Welded Wire Mesh

Welded Wire Mesh Panel

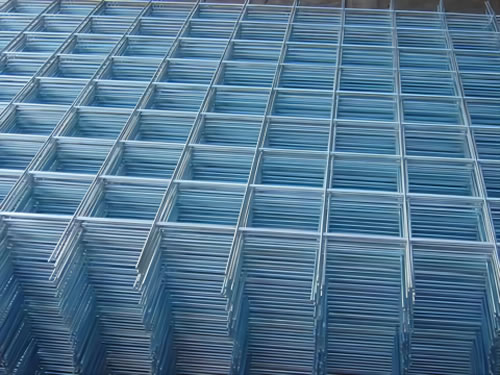

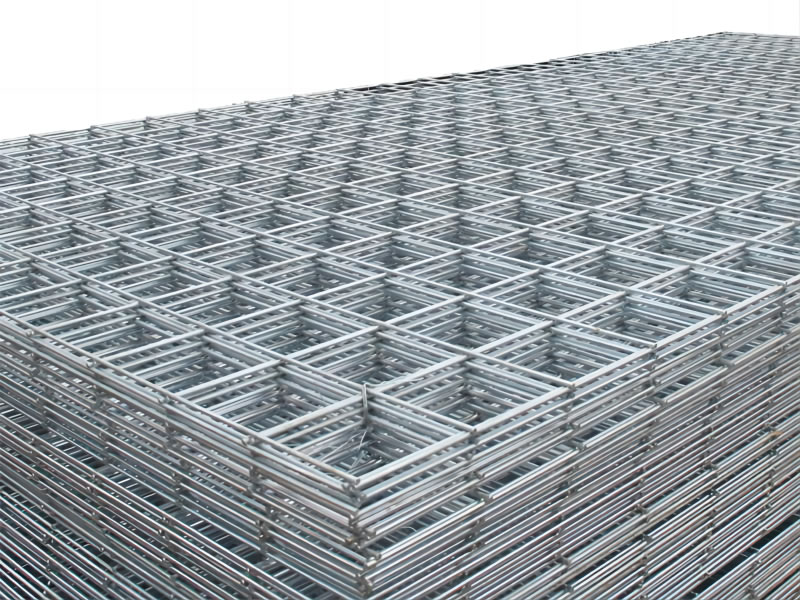

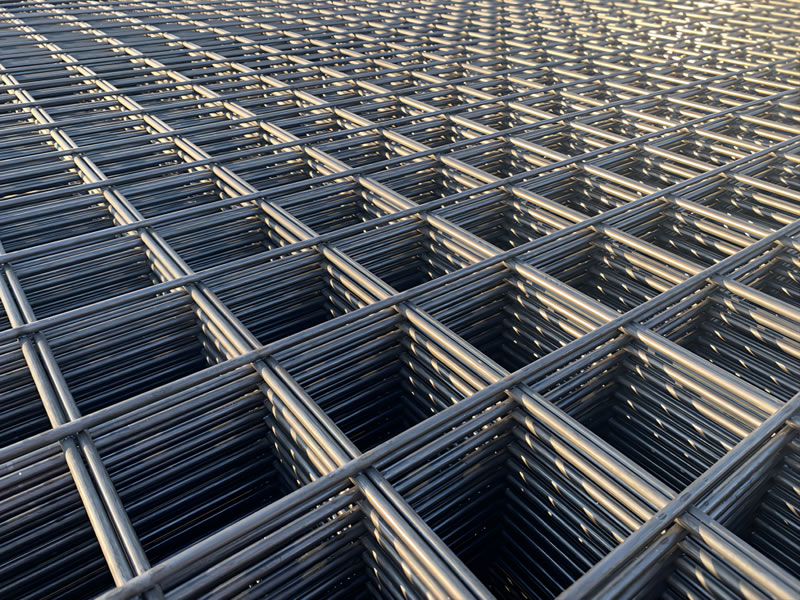

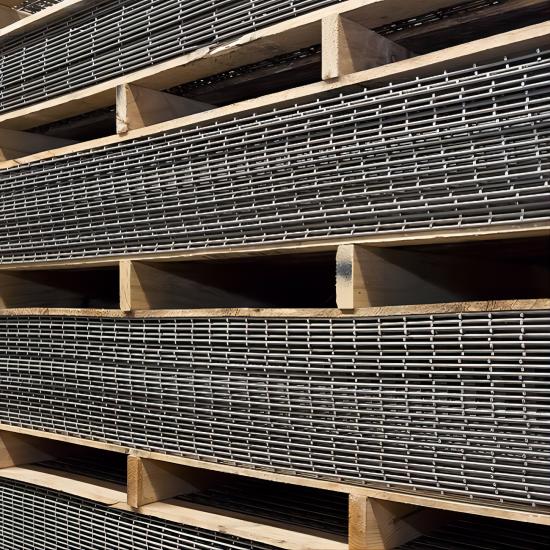

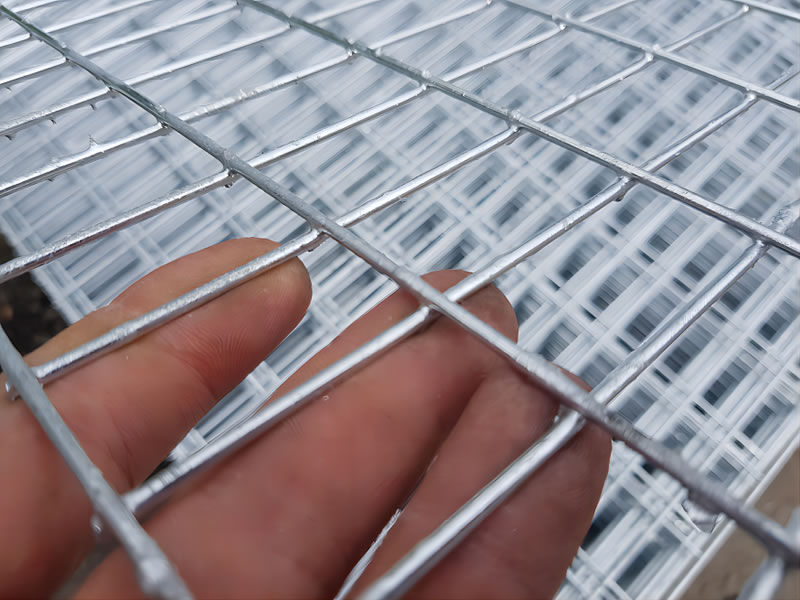

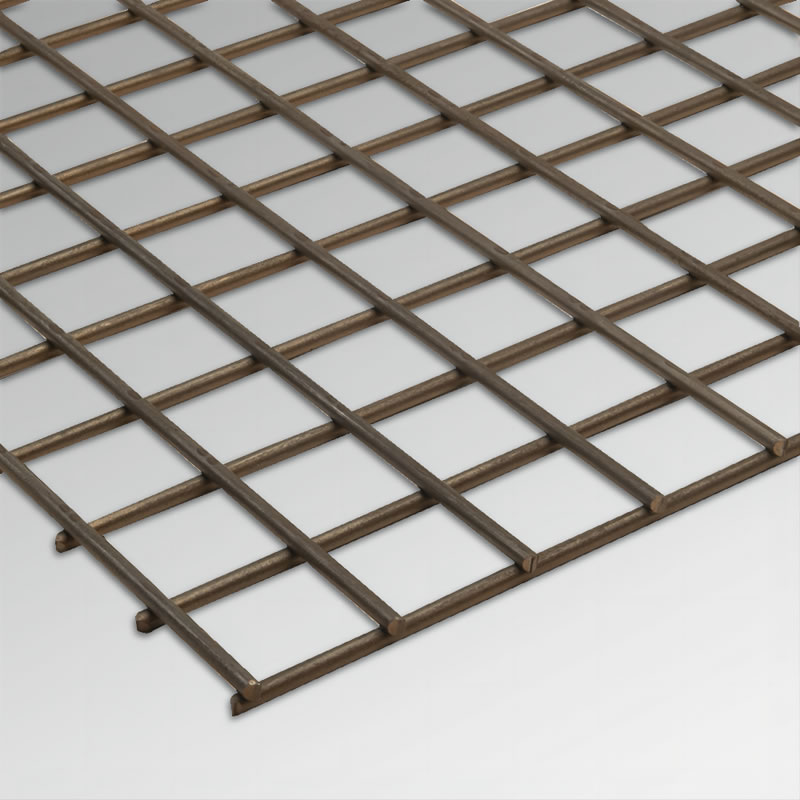

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on. Material: Low carbon steel wire, stainless steel wire and rebar wire.


Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.

Material: Low carbon steel wire, stainless steel wire and rebar wire.

Assortment:
Accoading to the suface treatment and material galvanized welded wire mesh panel devided into Stainless steel welded wire mesh panel,black welded wire mesh panel,galvanzied welded wire mesh panel.(electro galvanized welded wire mesh panel, hot-dipped galvanized welded wire mesh panel) PVC coated welded wire mesh panel.(dark green,light green,blue,yellow,white)

Accoading to different using welded wire mesh panel including construction welded wire mesh panel, decorative welded wire mesh panel, welded wire mesh panel fence, mine sieving weled wire mesh panel, reinforcing concrete mesh.

Features:
Welded wire mesh panel offers flat surface,uniform mesh, firm welding with strong structure and integrity, High strength and good stability, good corrosion and rust resistance, Improve bonding to concrete, minimize concrete cracking, Durable and long service life. with low price for large area of use.

Application:
Welded wire mesh panel Widly use in construction project,industry,agriculture, farming,transportation,mining, etc. Such as decorative mesh, sample holder, protection or separation fence for machine and equipment, animal and livestock, flower and trees, window, railway, express road, fild area, etc. as material of cage and baskate, etc. It is ideal materials of reinforced concrete construction, floor slabs reinforcement, brick wall reinforcement, floor warming etc.

Wire Diameter(mm) Aperture (mm) Width(m) Length
Inch MM
2.0mm-3.2mm 1" 25.4 0.914m-1.83m The length does not limit
2.0mm-4.5mm 2" 50.8 0.914m-2.75m
2.0mm-6.0mm 3" 70.2 0.914m-2.75m
2.0mm-6.0mm 4" 101.6 0.914m-2.75m
2.0mm-6.0mm 5" 127 0.914m-2.75m
2.0mm-6.0mm 6" 152.4 0.914m-2.75m
2.0mm-6.0mm 7" 177.8 0.914m-2.75m
2.0mm-6.0mm 8" 203.2 0.914m-2.75m
